Bzw-500 rotary cutting die stripping machine

BZW-500 Rotary stripping machine Product feature:1.High precision rotation, it can process the wire diameter of max. 50mm;2.Strong stripping force which max. length is 300mm;3.Exclusive processing equipment for the DC cable in green energy industry.4.It is specially design to solve the difficulty in stripping the large

Featured Products

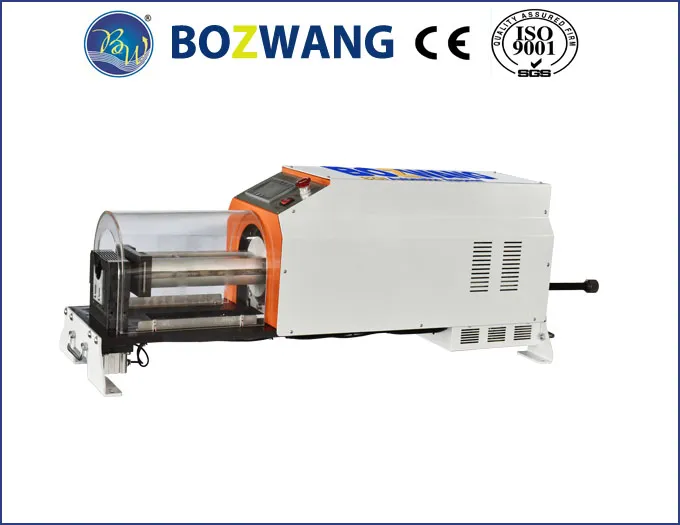

BZW-500 Rotary stripping machine
Bzw-500 Rotary Cutter Mode Stripping Machine

Product feature:
1.High precision rotation, it can process the wire diameter of max. 50mm;
2.Strong stripping force which max. length is 300mm;
3.Exclusive processing equipment for the DC cable in green energy industry.
4.It is specially design to solve the difficulty in stripping the large cable, which uses special axis positioning and double rotary cutting tool;
5.Economical and practical, and high in cost performance.

Technical parameter:
1.Control system: PLC control and touch screen
2.Stripping method: Rotary stripping
3.Stroke: 0-280mm
4.Power: 220V 50-60HZ
5.Air supply: 0.5-0.7Mpa
6.Motor: 300W
7.Stripping diameter: ø10-ø50mm
8.Stripping error range: ±0.2mm
9.Speed:10-30 pcs/min
10.Dimension: 1400x330x420
11.Weight: 110Kg

Technical Support
After-sales service and technical support
Direct access to BZW Machinery specialists
Free telephone support all the time
Assist your workers in performing adjustment.
Remote access for very efficient trouble shooting
Fast reaction time for on-site repair
Breakdown plan with guaranteed reaction times
Installation & more
The first stage of production is crucial to achieving high precision results. Know-how and correct handling can ensure trouble-free wire processing for your company.
Professional installation is the key to a smooth production start. Our experts lead you through the main functions of the equipment. We set up your machine and produce your first custom sample application on the product together with you.
Production support
New machine or software solutions require time and professional know-how.To ensure production runs smoothly and to avoid inefficiencies, our machinery offers a variety of wire processing solutions suited to your individual demands. Ask your representative for a personal product demonstration or a Product Demo Video. Or our service engineers are available to assist your operators at the beginning of production.
